The operable wall shall be specified as Bildspec Moove, sliding acoustic walls shall be installed by an authorised representative of the manufacturer and shall be an aluminium-framed glass-panel partition system, operating in a sequential manner of top-supported, manually operated panels that can be linked together to form a sound retardant closure. Glass is supplied in accordance with the Australian Standard:  AS1288 Glass selection in Buildings.

Bildspec’s new Moove System also incorporates one of the smallest frames on the market to maximise light and the aesthetics of a glass system in its environment.

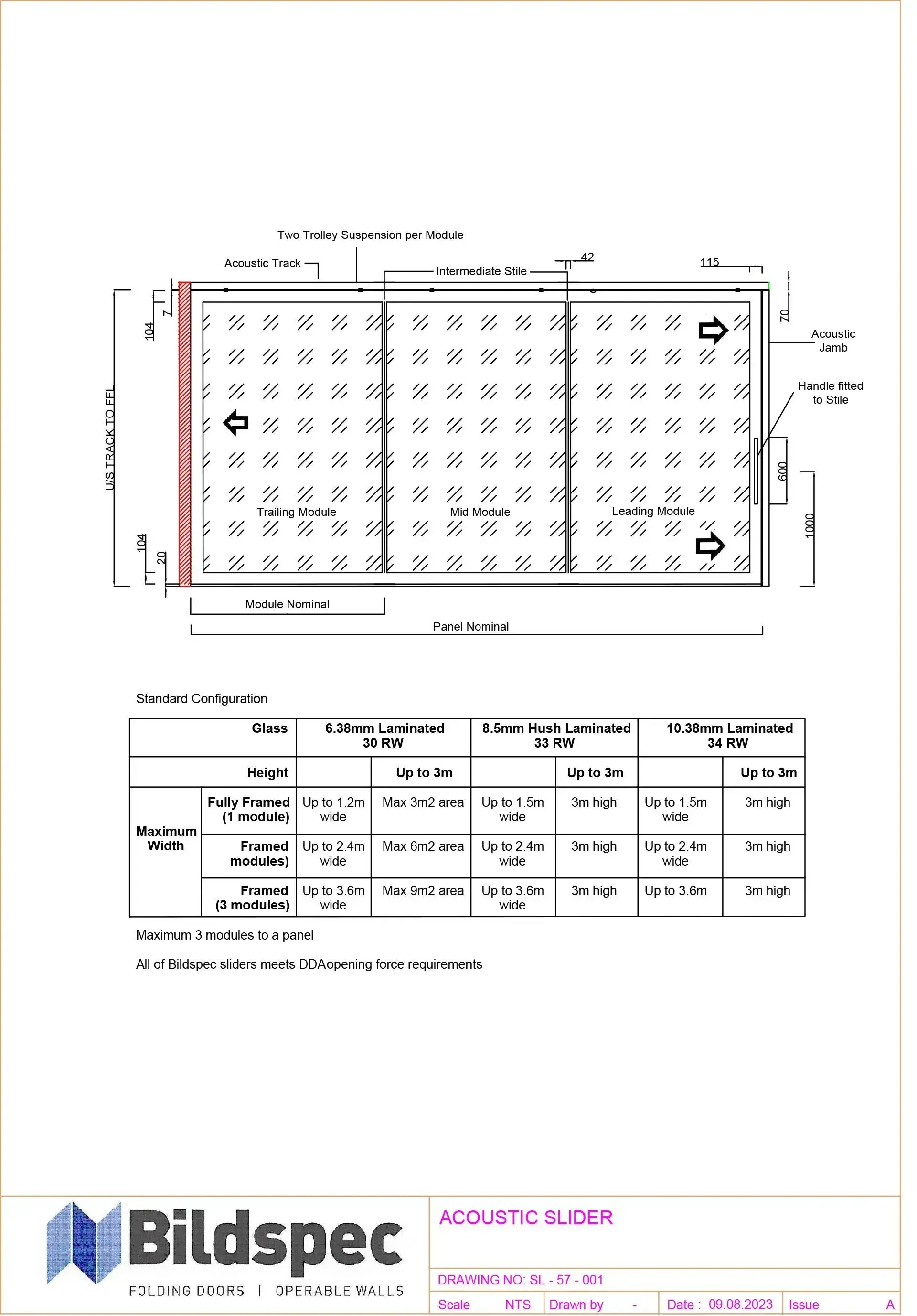

The Moove can achieve a maximum width of 3.6m for a single sliding door (3 panels) or 7.2m for a bi-parting slider (6 panels). Maximum achievable height is 3m. Maximum panel width of 1.5m facilitating wide, clear views.

The Rw 30 Slider Panel weight is 21kg per Square Metre with a 6.3mm laminated glass finish. Please enquire for other finishes.

Please click on this link to view the brochure

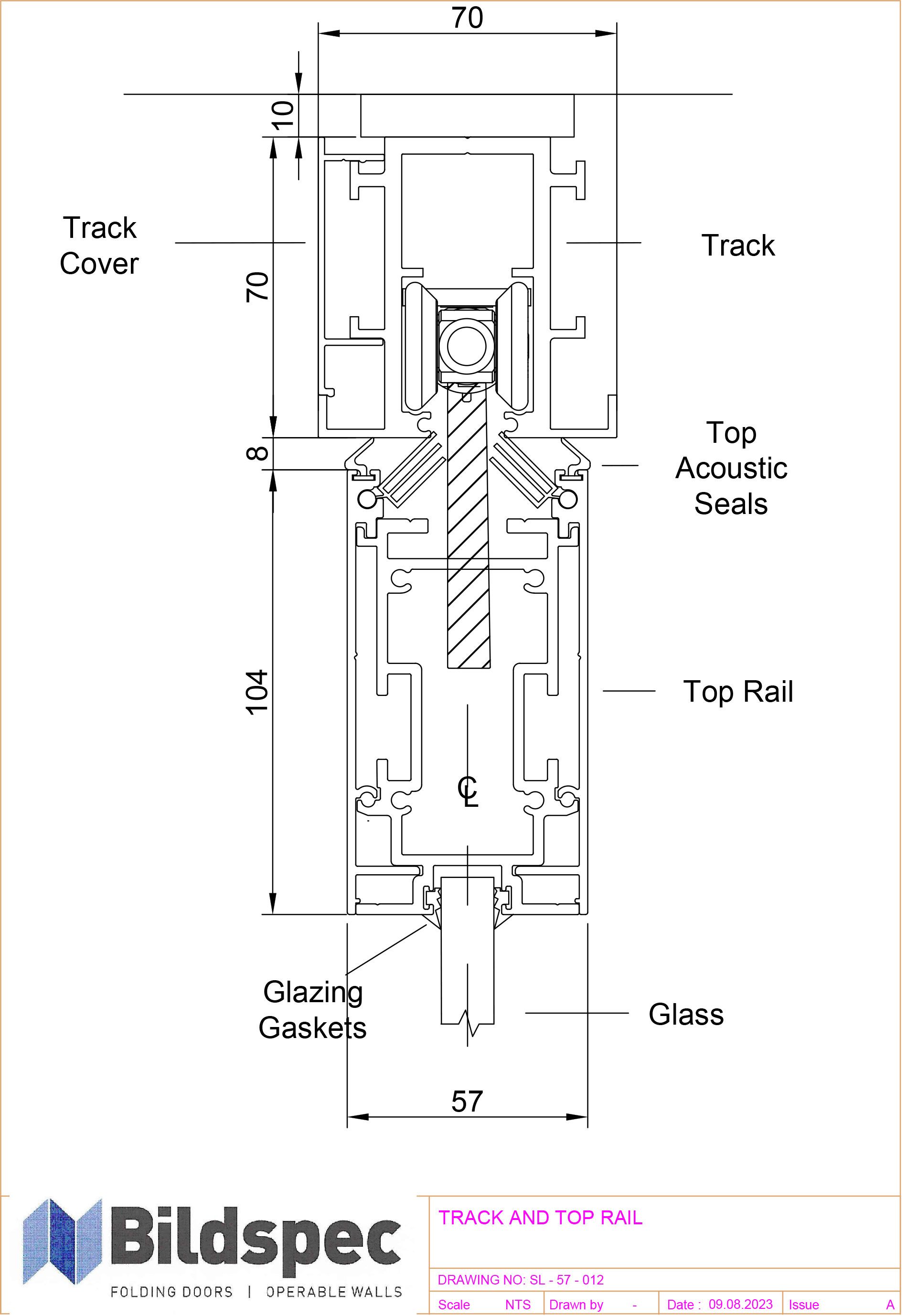

These sliding partition glass doors offer effortless movement without any floor tracks. This slider includes a special track and trolley system uniquely designed for this product, which translates into a system that is not only quiet, but glides effortlessly across it’s opening.  The Moove panels slide in a sequential movement, with overlapping vertical stiles, and interlocking top and bottom. No bottom track required.  An opening force of 20 Nm or less is required to operate the first panel.

Please click on this link to view the brochure

Available in single, dual, or bi-parting configurations.  Doors can run wall to wall, storage cavity to storage cavity, and wall overlap.

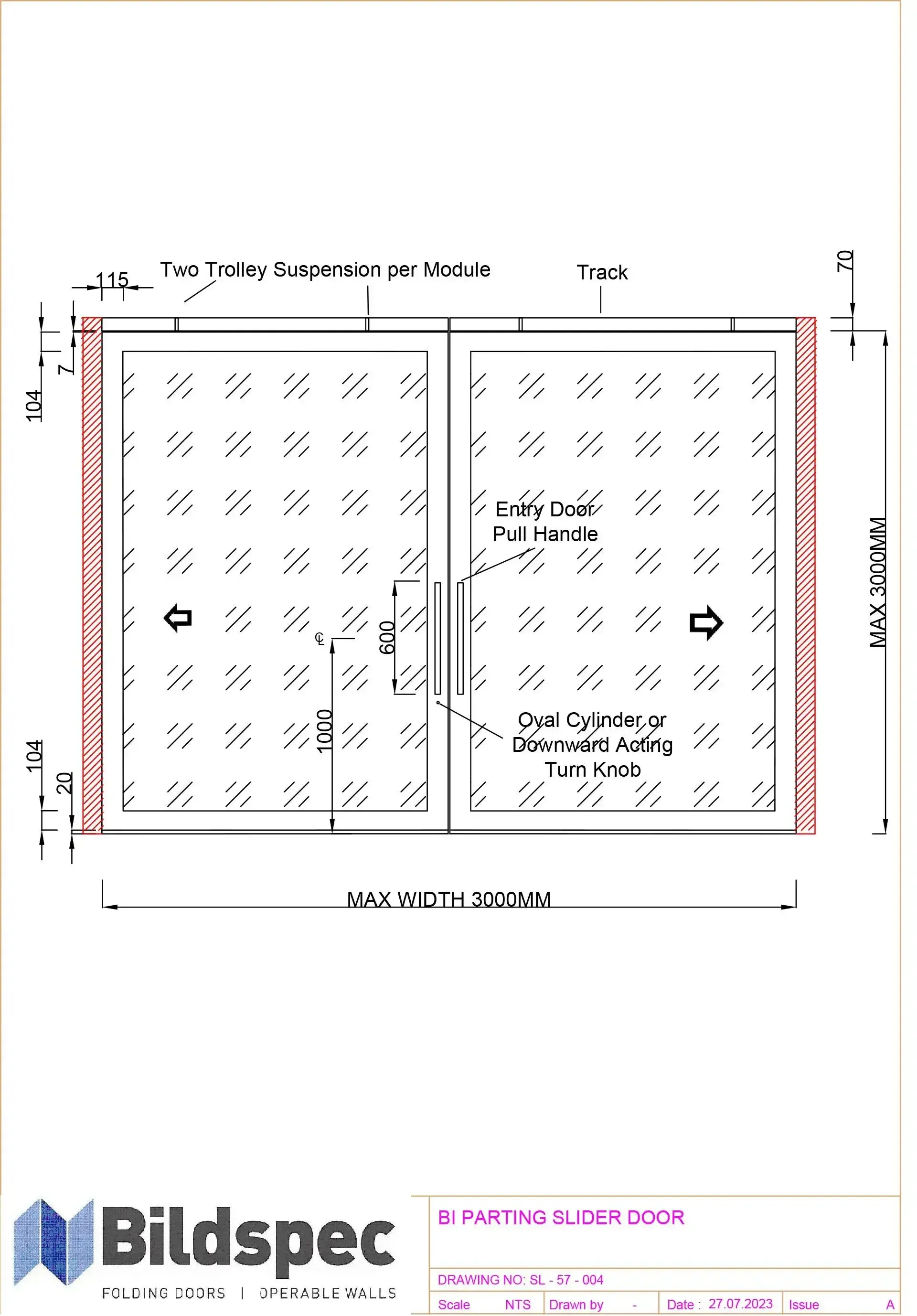

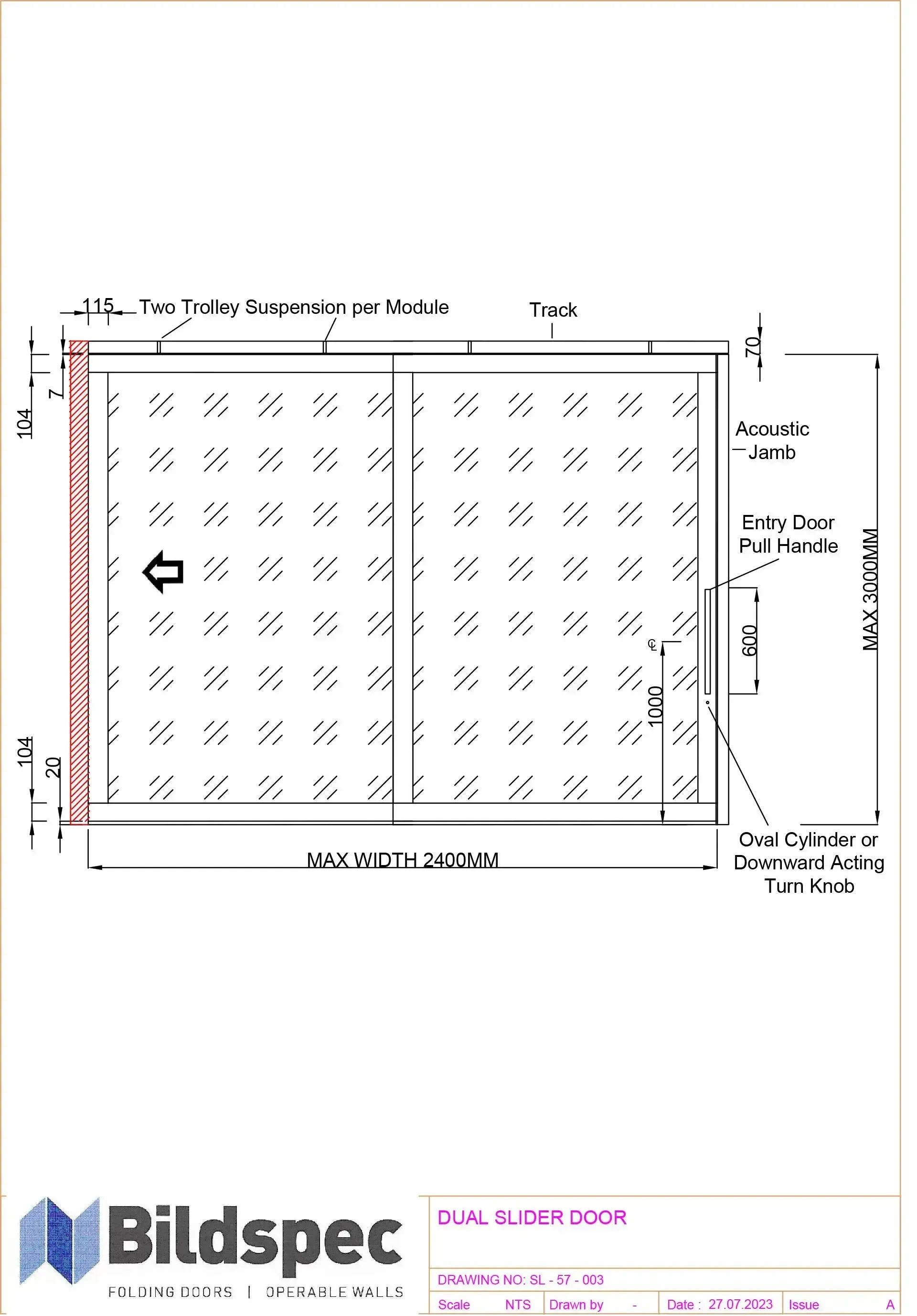

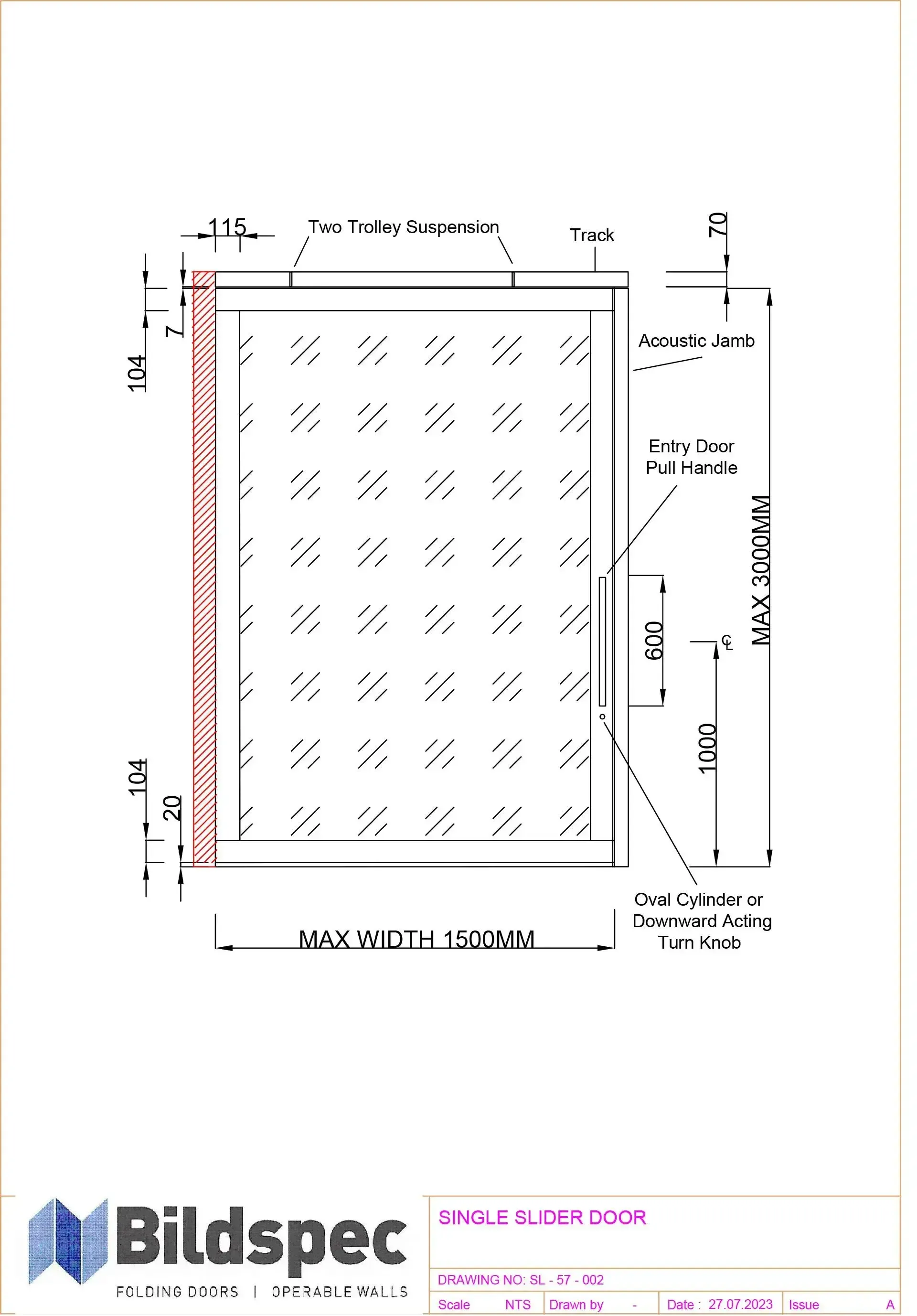

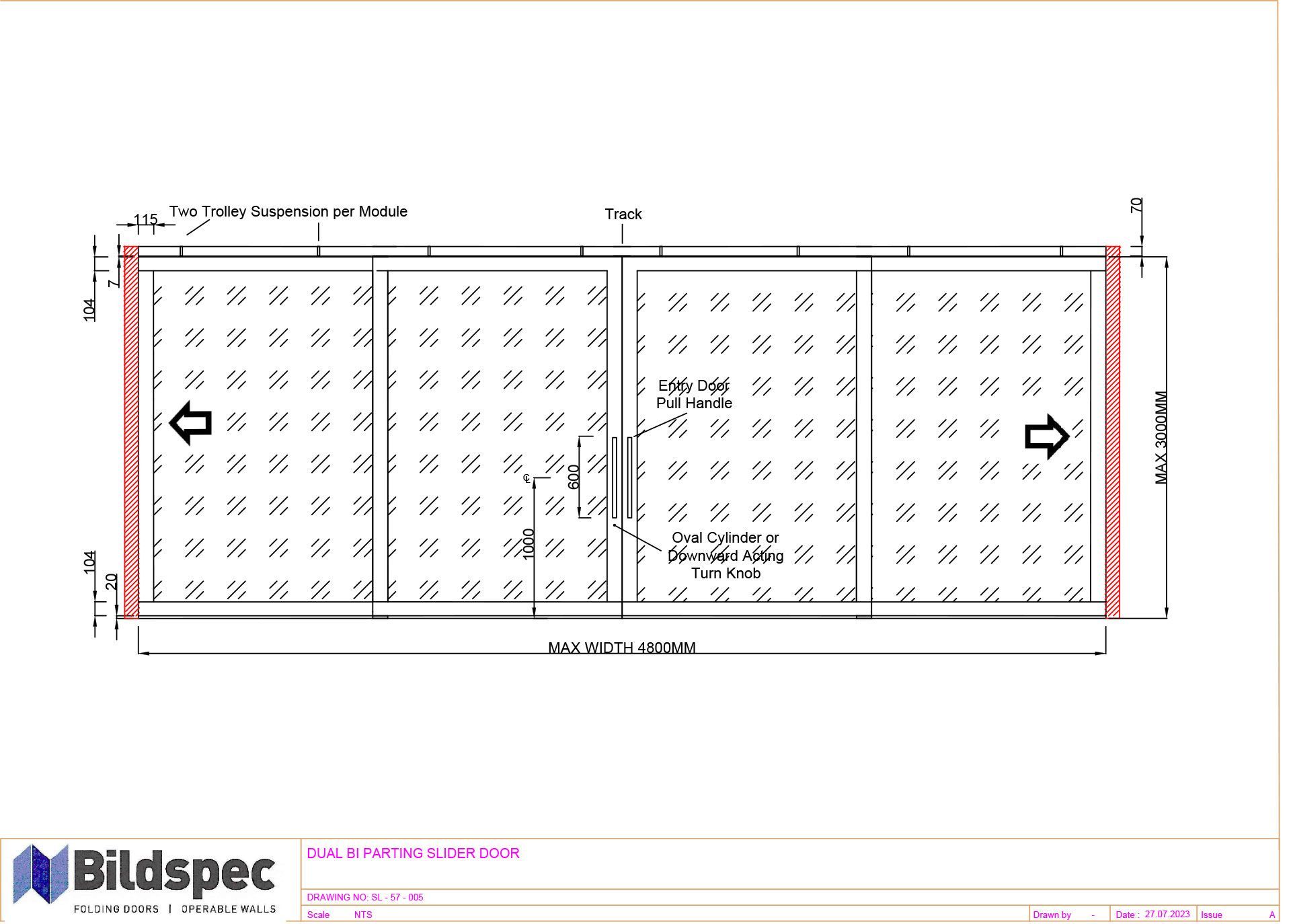

Please click on the following links to view brochures: SL 57 002; SL 57 003; SL 57 004; SL 57 005

The lead panel soft close for slam reduction A.S.S (Anti Slam System), reduced maintenance, and reduced closing force. Rigorously tested and reduces operational noise.

With rigorous acoustic testing at the new, large format facility at UTS in Sydney, we were able to achieve certified results of Rw30, Rw33, and Rw34 acoustic performance – enough to meet most acoustic specifications. The weights of these system are as follows:

Rw30 – 21 kg Per Sqm

Rw33 – 25kg Per Sqm

Rw34 - 29kg Per Sqm

Please click on this link to view the test report

Frame finishes are either natural anodised or powder coated as required.

Panel infill materials offered in laminated glass plus many other infill possibilities to enhance visibility and style, while balancing visual privacy needs.

Bildspec, in conjunction with a testing lab, performed a variety of pull tests on their complete systems to ascertain the maximum failure load of their track and trolley systems when installed.

Using a 200kN testing machine, we loaded the systems up at 5mm/min to produce analytical graphs for our consulting engineers to calculate the SWL for our complete installed system.

The engineers calculated the SWL using factors of safety and in conjunction with AS/NZS 1170.0 - 2002/ Amdt 2011 Structural Design Actions - Part: 0 general principles, and AS/NZS 1170.1 - 2002/ Amdt 2011 Structural Design Actions - Part: 1, permanent, imposed, and other actions.

Bildspec completed this certification to make sure our systems were fit for purpose and will correctly perform every day of the year.

Please click on this link for more information on our Safe Working Load Testing

Include D-handles, flush-pull, and lever snib action and locking.

Locking options including Flush/Latch, Lever/Latch, or Foot bolt. Locking provided at waist level to assist with security and ease of use.

Bildspec can offer BCA-compliant options for accessibility, using a lever activated snib cylinder.

Bildspec operable walls shall be warranted against defect in materials and work for 12 months from installation.

Please click on this link to view a sample warranty letter
